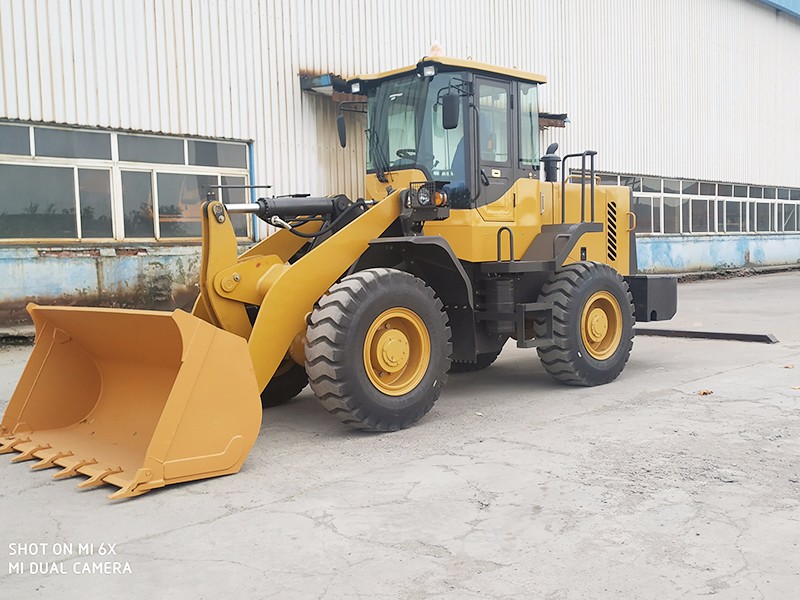

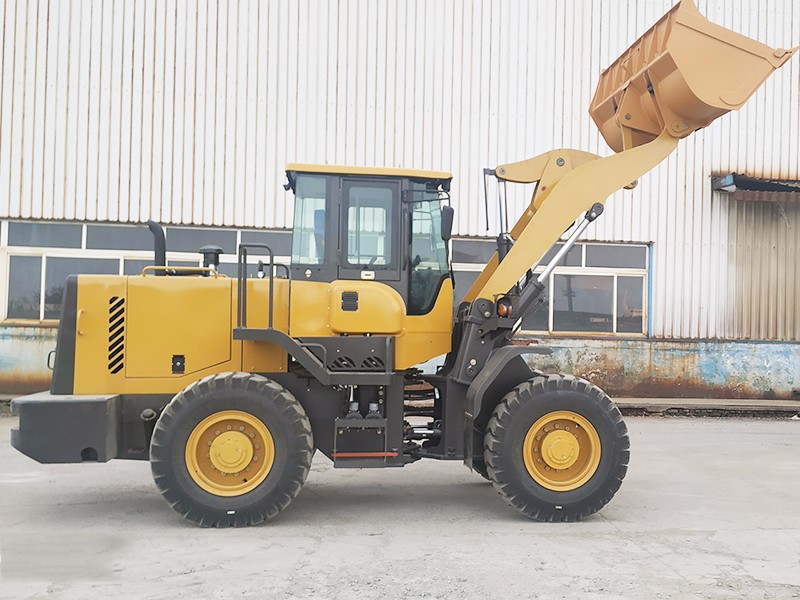

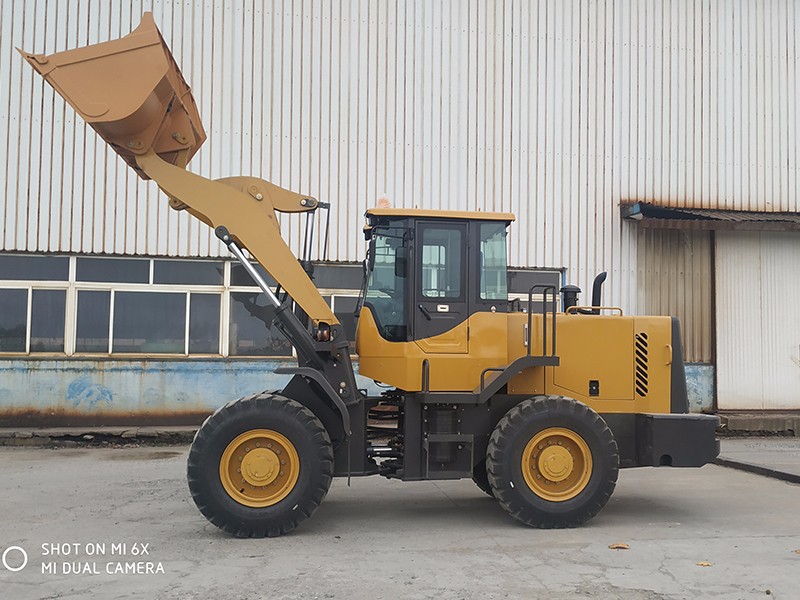

國三SHANMON938D裝載機

國三SHANMON938D裝載機

山東威猛工程機械有限公司

公司地址:山東省青州市南環路9567號

2019-12-3 1051

信息詳情

SHANMON938D輪式裝載機主要結構特點和采用的先進技術

Main specifications and characters of  SAM938D  loader


1、采用中央鉸接式車架,轉彎半徑小,機動靈活,側向穩定性好,便于在狹窄場地作業。Central articulated frame, small turning radius, mobile and flexible, lateral stability, ease of operation in the narrow space.

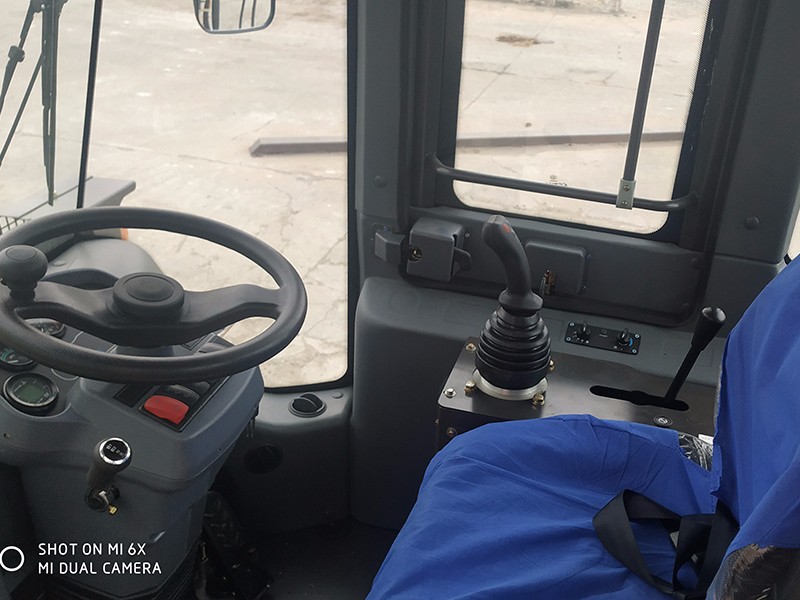

2、人性化設計,視野寬闊,駕駛靈活。Easy-to-read gauges display and ergonomically designed controls make the driving convenient and comfortable

3、采用了氣頂油鉗盤式四輪制動系統保證行車安全,制動平穩,安全可靠;駐車采用鉗盤式制動Air over hydraulic disc brake on 4 wheels system and expire brake is used in brake system, which has large brake force and makes stable brake and high safety

4、采用全液壓轉向,動力換檔變速,工作裝置液壓操縱,整機操作輕便靈活,動作平穩可靠。Full hydraulic steering, power shift transmission, hydraulic control device work with two lightweight flexible operation, action smooth and reliable

5、雙泵合流和同軸流量放大系統提高了工作效率和經濟性Twin pump-merging flow of working pump and steering pump. when the machine is not steering more engine power is available to breakout and lift forces. Resulting in increased economy

6、折疊式大側門鋼結構發動機罩,美觀大方,維修方便

The big loading engine side covers made in steel are of good appearance and suitable for maintenance

7、先導控制使操作更靈活

Pilot hydraulic implement controls make operate easy and comfortable

Performance1額定載重量      rated loading3000kg
2整機重量        overall weight10500kg
3斗容量          bucket capacity1.8m3
4最大牽引力      maximum traction force95KN
5最大掘起力      maximum breakout force127KN
6最大爬坡能力    maximum grade ability30℃
7最大卸載高度    maximum dump height3150mm
8最大卸載距離    maximum dump reach1200mm
9整機外形尺寸    overall dimension (L×W×H)7110*2500*3100mm
10最小轉彎半徑    minimum turning radius6060mm
發動機Engine11型號modelWP6G125E331(III)
12型式type電控高壓共軌Electrically controlled high-pressure common rail
13汽缸數-缸徑*行程N(yùn)O. of cylinder-bore*stroke6-108*125
14額定功率        rated power92kw—2200r/min
15最大扭矩        maximum torque500N.m
 16最低燃油消耗率 min. fuel-consume ratio≦210Kw/ h
傳動系統

   Transmission system
17變矩器型式      torque converterYJ315-X
18變速箱型式      gearbox mode動力換擋power shift,
19檔位數          gears前進檔4個,倒退檔2個

   4 forward  2  reverse
20最高車速        maximum speed40km/h
驅動橋Drive axles21主減速式:    main reducing spiral螺旋傘齒輪一級減速bevel gear grade 1reduction
22輪邊減速型式    decelerating mode一級行星減速

   Planetary reduction grade 1
23軸距            wheel base (mm)2850mm
24輪距            wheel tread1800mm
25最小離地間隙    ground clearance370mm
液壓系統

   Hydraulic system
26系統工作壓力    system working pressure18MPa
27動臂提升時間    boom lifting time4.5
28三項和          total time8.8±0.5s
制動系統

   Brake system
31行車制動        service brake氣頂油鉗盤式四輪制動

   air assist disc brake on 4 wheels
32駐車制動        parking brake手動嵌盤式

   Manual disk brake
輪胎

   Tyre
33規格            type specification17.5-25
34前輪氣壓        front tyre pressure0.4Mpa
35后輪氣壓        rear tyre pressure0.35Mpa
